vRTK GNSS RTK System (Rover)

Equipped with professional dual cameras, vRTK is Hi-Target’s first lightweight and innovative visual RTK receiver product, which not only enables non-contact image surveying, breaking through the objective constraints of previous work, but also improves the speed of stakeout with the function of Live View Stakeout. It greatly improves the work efficiency of engineering users.

Dual Cameras for Image Survey and Live View Stakeout

Non-contact measurement greatly improves the usable range of GNSS and efficient safe operation.

Strong Signal and High-quality Data

-New generation GNSS SOC chip with 1408 channels, supports new frequency points B1C, B2a, and B2b RTK decoding for Beidou-3 Satellites.

-Introduction of multi-frequency anti-jamming technology and multi-step adaptive filtering technology to ensure strong signals, high-quality data, fast fix, and high accuracy.

Abundant Industry Data Results

-Abundant types of data results meet the needs of different industry applications.

-Compatible with the mainstream modelling software to attain point cloud and 3D modelling in one step.

iHand55 Controller

The iHand55 Handheld Controller is a professional field controller with a big vision. Adopting a full-keyboard design, iHand55 supports the fast charge. The updated screen is readable in direct sunlight. More features of the latest Hi-Survey Road Software contribute to achieving high intelligence. Keeping robust and reliable in fieldwork under any conditions, iHand55 is a perfect choice for your survey work.

- 5.5”sunlight readable display capacitive touch screen for fingers or stylus.

-QWERTY full keyboard designed, convenient for different measurement application scenarios.

-Quick charge with internal lithium battery to improve efficiency under long time job.

- Android 11.0 operating system equipped to maintain the productivity of numerous survey projects and data.

Product Parameters

•             8mm+0.7mm/° Tilt Survey Accuracy

•             BDS/GPS/GLONASS/GALILEO/QZSS/IRNSS/SBAS Satellite Tracking

•             2cm to 4cm Image Survey Accuracy

•             1408 Channels

•             2cm Image Stakeout Accuracy

•             Built-in 8GB ROM Data Storage

V30 Plus GNSS RTK System (Base)

With its built-in multi-constellation GNSS RTK engine, smaller dimension, and industrial-grade compact design, V30Plus provides a flexible GNSS work solution.

It also integrates with the Web UI, WIFI, Bluetooth and 4G module to make data management and transmission more convenient and faster.

Multi-constellation GNSS engine

The heart of the device provides reliable results in harsh environments with its unique GNSS positioning algorithm. And supports a wide range of satellite tracking signals. It also reduces the multipath effect influence.

Data Communication

It has a long transmission distance and good electromagnetic compatibility, can compatible with various communication protocols. And perfectly compatible with a variety of CORS systems.

Smart Application

Product Parameters

•             8mmH/ 15mmV Real-time Kinematic Precision

•             GPS, GLONASS, Galileo, BDS, QZSS, SBAS Signal Tracking

•             Slope Method 2.0 Tilt Survey

•             800+ Channels

•             Support Multi-protocol Radio (Receive & Transmit)

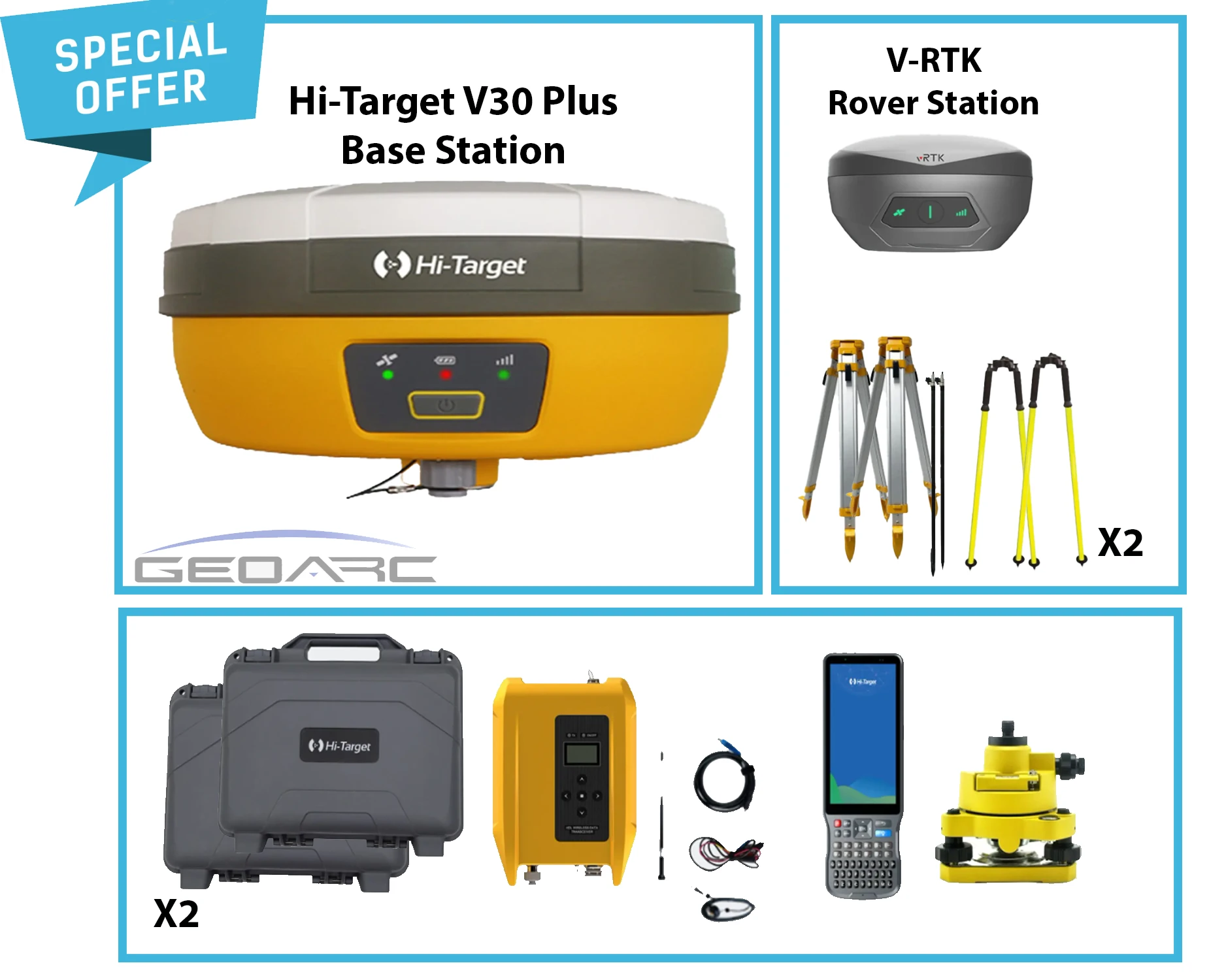

Included in the bundle

•             vRTK GNSS RTK System (Rover) x 1

•             V30 Plus GNSS RTK System (Base) x 1

•             Power Adapter x 1

•             USB Data Cable x 1

•             TB-1 Antenna Connector x 1

•             Survey Benchmark x 2

•             Steel Tape (3Meters) x 1

•             Short Connecting Rod x 1

•             Radio Receiving Antenna x 1

•             External Radio HDL460A(Hi-target) x 1

•             Radio Communication Cable x 1

•             Power Cable For External Radio x 1

•             Extension Rod x 1

•             Extension Rod Accessories Package x 1

•             UHF-460C Transmitting Antenna x 1

•             RF-35A Transmitting Antenna Connector x 1

•             Tribrach Aluminum Sheet x 2

•             Certificate Of Quality x 2

•             Warranty Card x 2

•             QR Code Manual Card (Hi-target) x 1

•             Envelope x 2

•             Plastic Case PVC Label (Hi-Target) x 2

•             Base Plastic Case gray (137) w/o logo x 2

•             Aluminum Tripod x 2

•             Tribrach With Optical Plummet x 1

•             Radio Receiving Antenna x 1

•             Survey Pole Hi-target (new logo) 2.2m x 1

•             Power Adapter x 1

•             ihand55 Hand-held Controller x 1

•             USB Data Cable x 2

•             iHand55 Controller Pallet x 1

•             Touch Pen x 1

•             Carbon Fiber Bipod for Survey Pole x 1
