V500 GNSS RTK System (Rover)

Equipped with an upgraded high-definition starlight camera, V500 brings out an excellent visual stakeout experience in low-light conditions. The compact and lightweight design,24 Hours Ultra-Long battery life make V500 a feasible and portable choice for surveyors and engineers in collecting data and improving position accuracy.

Better AR Stakeout Experience

– Visual positioning technology to find points with ease. The combination of virtual and reality by overlaying the design files with the real scene improves stakeout efficiency.

– Professional-grade starlight night vision HD camera with wide angle. Excellent performance and algorithm in tracking signals, achieving an accuracy of up to 1cm.

– Seamless switch of 360-degree AR stakeout between the handheld controller and the rover brings out immersive stakeout experiences making stakeout fast and accurate. Hi-Target V500

Built-in High-Precision Tilt Survey

– Based on the new generation of IMU, initialization occurs automatically at the startup without obtaining a fixed solution.

– Measure as reaching the point, efficient and convenient.

– Stable performance for reliable results.

Full Constellation and Full Frequency

– Advanced GNSS SoC chip features 1408 channels, supporting new frequency points B1C, B2a, and B2b RTK decoding for Beidou-3 Satellites.

– Multi-frequency interference detection technology and multi-stage adaptive filtering technology with a strong signal, good data, fast fixed procedure, and high accuracy.         Hi-Target V500

iHand55 Controller

The iHand55 Handheld Controller is a professional field controller with a big vision. Adopting a full-keyboard design, iHand55 supports the fast charge. The updated screen is readable in direct sunlight. More features of the latest Hi-Survey Road Software contribute to achieving high intelligence. Keeping robust and reliable in fieldwork under any conditions, iHand55 is a perfect choice for your survey work.

- 5.5”sunlight readable display capacitive touch screen for fingers or stylus.

-QWERTY full keyboard designed, convenient for different measurement application scenarios.

-Quick charge with internal lithium battery to improve efficiency under long time job.

- Android 11.0 operating system equipped to maintain the productivity of numerous survey projects and data.

Product Parameters

8mm+0.7mm/° Tilt Survey Accuracy

BDS/GPS/GLONASS/GALILEO/QZSS/IRNSS/SBAS Signal Tracking

Built-in 16GB ROM Data Storage

1408 Channels

1cm Image Stakeout Accuracy

<0.75kg Weight

iRTK5 GNSS RTK System (Base)

Benefiting from the next-generation GNSS engine, unlimited communication technology and innovative designs, iRTK5, the high-quality scalable GNSS receiver, provides an industry-leading GNSS RTK surveying solution.

Hi-RTP Global PPP Service

The correction source has been extended by Hi-RTP global correction service provided by Hi-Target. Enabling users to work without a base-station in rural or remote areas anywhere in the world.

HD Touchable OLED Screen

The newly designed HD OLED screen, which has RGB color and is touchable, has 1.3″ and 240*240 resolutions. Users can quickly check and set the receiver status for easier fieldwork.

Revolutionary Tilt Survey with Built-in IMU

Customers benefit from calibration-free for tilt surveys without centering. Once you reach the surveying points, immediately start the operation. Compared with bubble leveling, boost working efficiency by 20%.

Product Parameters

8 mm H/ 15 mm V Real-time kinematic precision

GPS, GLONASS, Galileo, BDS, QZSS, SBAS signal tracking

PPP Service

1404/800+ Channels

Support multi-protocol radio (Receive & Transit)

Revolutionary Tilt Survey with built-in IMU

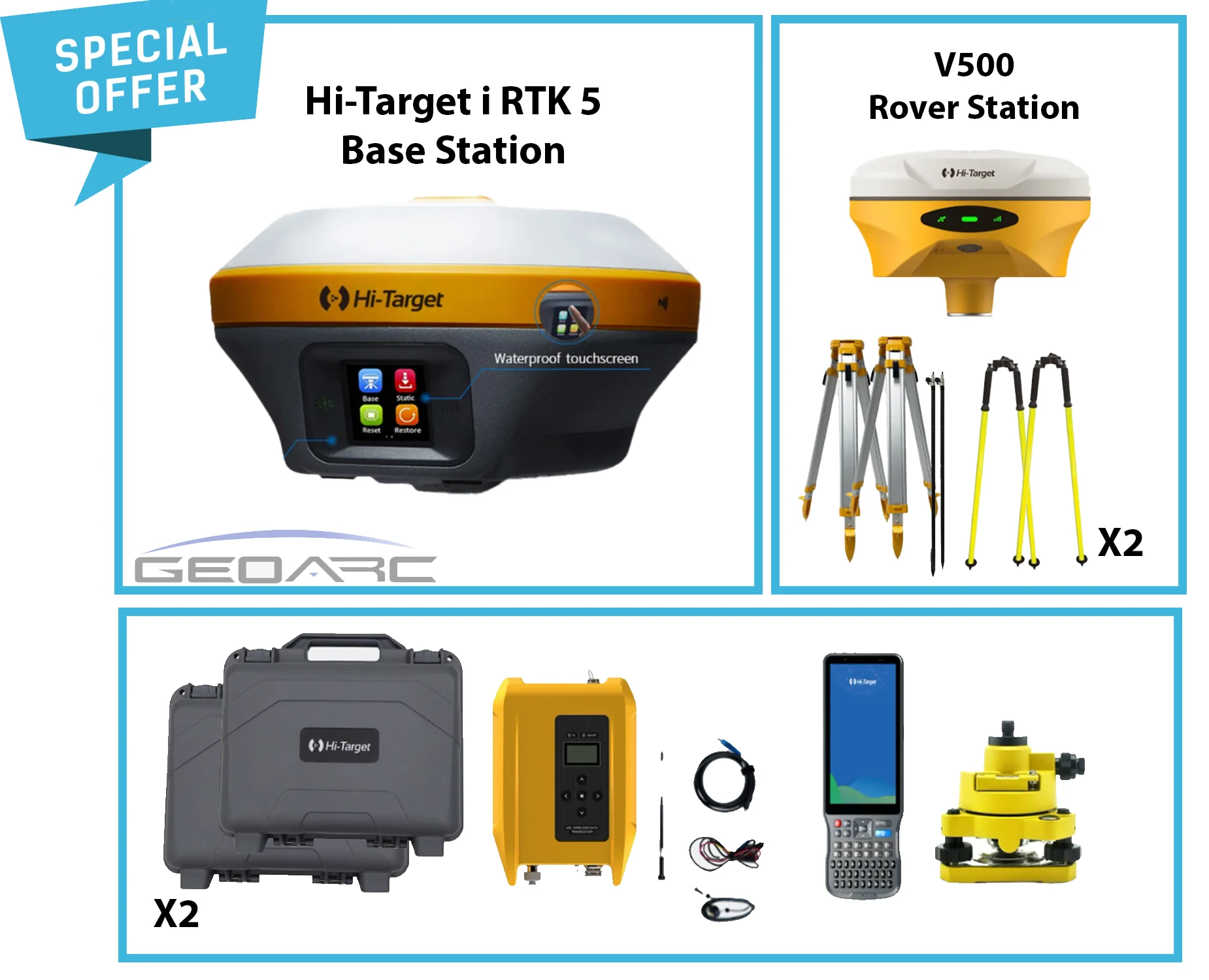

Included in the bundle

·       V500 GNSS RTK System x 1

·       iRTK5 GNSS RTK System (Base) x 1

·       Power Adapter x 1

·       USB Data Cable x 1

·       TB-1 Antenna Connector x 1

·       Survey Benchmark x 2

·       Steel Tape (3Meters) x 1

·       Short Connecting Rod x 1

·       Radio Receiving Antenna x 1

·       External Radio HDL460A(Hi-target) x 1

·       Radio Communication Cable x 1

·       Power Cable For External Radio x 1

·       Extension Rod x 1

·       Extension Rod Accessories Package x 1

·       UHF-460C Transmitting Antenna x 1

·       RF-35A Transmitting Antenna Connector x 1

·       Tribrach Aluminum Sheet x 2

·       Certificate Of Quality x 2

·       Warranty Card x 2

·       QR Code Manual Card (Hi-target) x 1

·       Envelope x 2

·       Plastic Case PVC Label (Hi-Target) x 2

·       Base Plastic Case gray (137) w/o logo x 2

·       Aluminum Tripod x 2

·       Tribrach With Optical Plummet x 1

·       Radio Receiving Antenna x 1

·       Survey Pole Hi-target (new logo) 2.2m x 1

·       Power Adapter x 1

·       ihand55 Hand-held Controller x 1

·       USB Data Cable x 2

·       iHand55 Controller Pallet x 1

·       Touch Pen x 1

·       Carbon Fiber Bipod for Survey Pole x 1
