V30 Plus GNSS RTK System (Rover)

With its built-in multi-constellation GNSS RTK engine, smaller dimension, and industrial-grade compact design, V30Plus provides a flexible GNSS work solution.

It also integrates with the Web UI, WIFI, Bluetooth and 4G module to make data management and transmission more convenient and faster.

Multi-constellation GNSS engine

The heart of the device provides reliable results in harsh environments with its unique GNSS positioning algorithm. And supports a wide range of satellite tracking signals. It also reduces the multipath effect influence.

Data Communication

It has a long transmission distance and good electromagnetic compatibility, can compatible with various communication protocols. And perfectly compatible with a variety of CORS systems.

iHand55 Controller

The iHand55 Handheld Controller is a professional field controller with a big vision. Adopting a full-keyboard design, iHand55 supports the fast charge. The updated screen is readable in direct sunlight. More features of the latest Hi-Survey Road Software contribute to achieving high intelligence. Keeping robust and reliable in fieldwork under any conditions, iHand55 is a perfect choice for your survey work.

- 5.5”sunlight readable display capacitive touch screen for fingers or stylus.

-QWERTY full keyboard designed, convenient for different measurement application scenarios.

-Quick charge with internal lithium battery to improve efficiency under long time job.

- Android 11.0 operating system equipped to maintain the productivity of numerous survey projects and data.

Product Parameters

8mmH/ 15mmV Real-time Kinematic Precision

GPS, GLONASS, Galileo, BDS, QZSS, SBAS Signal Tracking

Slope Method 2.0 Tilt Survey

800+ Channels

Support Multi-protocol Radio (Receive & Transmit)

Benefiting from the next-generation GNSS engine, unlimited communication technology and innovative designs, iRTK5, the high-quality scalable GNSS receiver, provides an industry-leading GNSS RTK surveying solution.

Hi-RTP Global PPP Service

The correction source has been extended by Hi-RTP global correction service provided by Hi-Target. Enabling users to work without a base-station in rural or remote areas anywhere in the world.

HD Touchable OLED Screen

Hi-Target iRTK5      The newly designed HD OLED screen, which has RGB color and is touchable, has 1.3″ and 240*240 resolutions. Users can quickly check and set the receiver status for easier fieldwork.

Revolutionary Tilt Survey with Built-in IMU

Customers benefit from calibration-free for tilt surveys without centering. Once you reach the surveying points, immediately start the operation. Compared with bubble leveling, boost working efficiency by 20%.            Hi-Target iRTK5

Product Parameters

8 mm H/ 15 mm V Real-time kinematic precision

GPS, GLONASS, Galileo, BDS, QZSS, SBAS signal tracking

PPP Service

1404/800+ Channels

Support multi-protocol radio (Receive & Transit)

Revolutionary Tilt Survey with built-in IMU

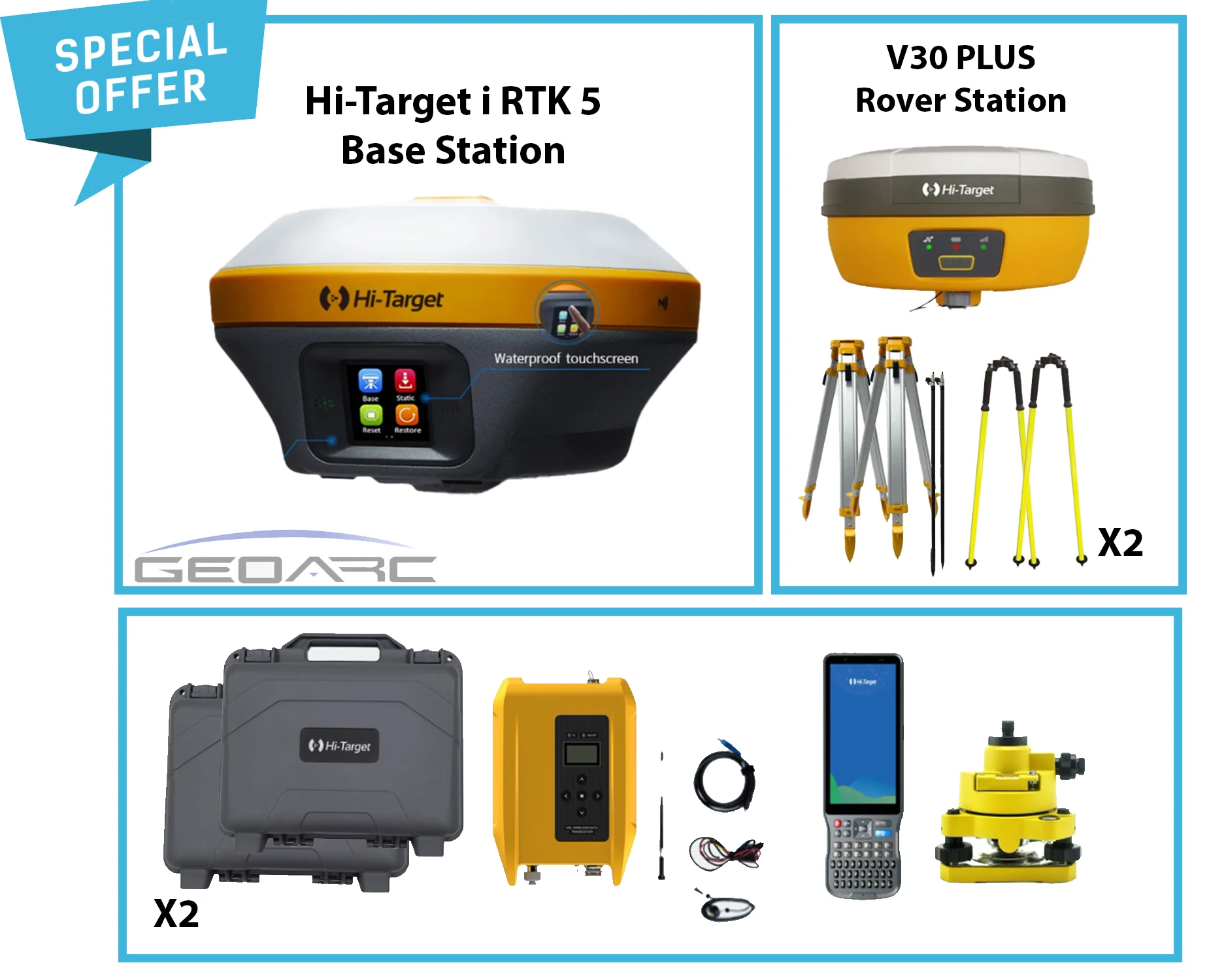

Included in the bundle:

·       V30 Plus GNSS RTK System (Rover) x 1

·       iRTK5 GNSS RTK System (Base) x 1

·       Power Adapter x 1

·       USB Data Cable x 1

·       TB-1 Antenna Connector x 1

·       Survey Benchmark x 2

·       Steel Tape (3Meters) x 1

·       Short Connecting Rod x 1

·       Radio Receiving Antenna x 1

·       External Radio HDL460A(Hi-target) x 1

·       Radio Communication Cable x 1

·       Power Cable For External Radio x 1

·       Extension Rod x 1

·       Extension Rod Accessories Package x 1

·       UHF-460C Transmitting Antenna x 1

·       RF-35A Transmitting Antenna Connector x 1

·       Tribrach Aluminum Sheet x 2

·       Certificate Of Quality x 2

·       Warranty Card x 2

·       QR Code Manual Card (Hi-target) x 1

·       Envelope x 2

·       Plastic Case PVC Label (Hi-Target) x 2

·       Base Plastic Case gray (137) w/o logo x 2

·       Aluminum Tripod x 2

·       Tribrach With Optical Plummet x 1

·       Radio Receiving Antenna x 1

·       Survey Pole Hi-target (new logo) 2.2m x 1

·       Power Adapter x 1

·       ihand55 Hand-held Controller x 1

·       USB Data Cable x 2

·       iHand55 Controller Pallet x 1

·       Touch Pen x 1

·       Carbon Fiber Bipod for Survey Pole x 1
