iRTK5 GNSS RTK System (Rover)

Benefiting from the next-generation GNSS engine, unlimited communication technology and innovative designs, iRTK5, the high-quality scalable GNSS receiver, provides an industry-leading GNSS RTK surveying solution.

Hi-RTP Global PPP Service

The correction source has been extended by Hi-RTP global correction service provided by Hi-Target. Enabling users to work without a base-station in rural or remote areas anywhere in the world.            Hi-Target iRTK5

HD Touchable OLED Screen

The newly designed HD OLED screen, which has RGB color and is touchable, has 1.3″ and 240*240 resolutions. Users can quickly check and set the receiver status for easier fieldwork.

Revolutionary Tilt Survey with Built-in IMU

Customers benefit from calibration-free for tilt surveys without centering. Once you reach the surveying points, immediately start the operation. Compared with bubble leveling, boost working efficiency by 20%.               Hi-Target iRTK5

Product Parameters

8 mm H/ 15 mm V Real-time kinematic precision

GPS, GLONASS, Galileo, BDS, QZSS, SBAS signal tracking

PPP Service

1404/800+ Channels

Support multi-protocol radio (Receive & Transit)

Revolutionary Tilt Survey with built-in IMU

SHC55 Handheld Controller

As a new generation of the handheld controller, the SHC55 with an updated screen provides a wider vision and high visibility under direct sunlight. The latest software Satsurv contributes more intelligence to the terminal. With a full-keyboard design and flash charge, SHC55 is an excellent choice for your survey work since it is durable and trustworthy in the field in all situations.

iRTK5 with SHC55 Remote Controller

5.5″ capacitive touch screen for fingers or stylus.

Full energy supply for fieldwork assurance

The alphanumeric layout of the keyboard for easier input.

The Android 10.0 operating system for productive survey projects and data

V30 Plus GNSS RTK System (Base0

With its built-in multi-constellation GNSS RTK engine, smaller dimension, and industrial-grade compact design, V30Plus provides a flexible GNSS work solution.

It also integrates with the Web UI, WIFI, Bluetooth and 4G module to make data management and transmission more convenient and faster.

Multi-constellation GNSS engine

The heart of the device provides reliable results in harsh environments with its unique GNSS positioning algorithm. And supports a wide range of satellite tracking signals. It also reduces the multipath effect influence.

Data Communication

It has a long transmission distance and good electromagnetic compatibility, can compatible with various communication protocols. And perfectly compatible with a variety of CORS systems.

Smart Application

Hi-Target V30 Plus

Product Parameters

8mmH/ 15mmV Real-time Kinematic Precision

GPS, GLONASS, Galileo, BDS, QZSS, SBAS Signal Tracking

Slope Method 2.0 Tilt Survey

800+ Channels

Support Multi-protocol Radio (Receive & Transmit)

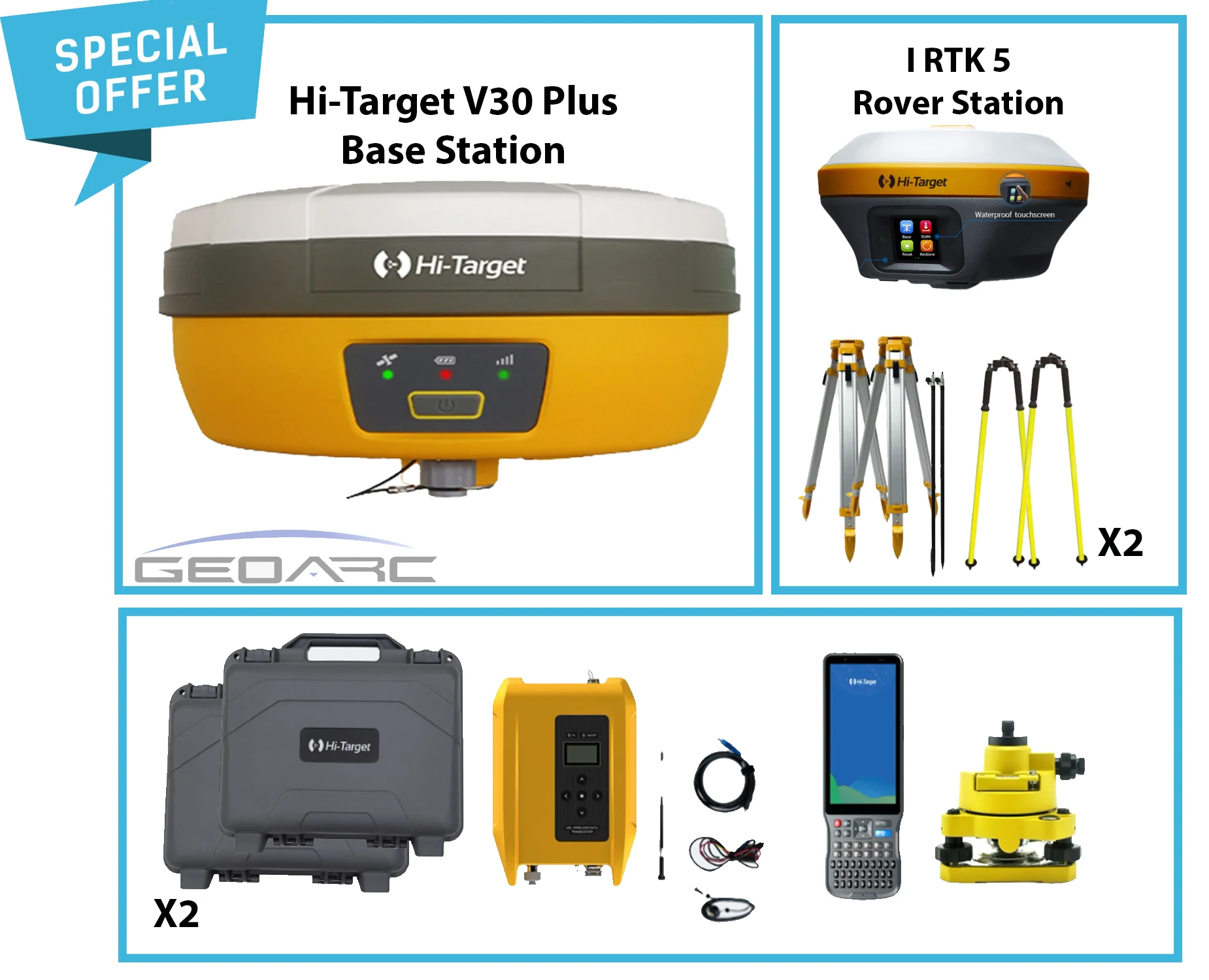

Included in the bundle

iRTK5 GNSS RTK System (Rover) x 1

V30 Plus GNSS RTK System (Base) x 1

Power Adapter x 1

USB Data Cable x 1

TB-1 Antenna Connector x 1

Survey Benchmark x 2

Steel Tape (3Meters) x 1

Short Connecting Rod x 1

Radio Receiving Antenna x 1

External Radio HDL460A(Hi-target) x 1

Radio Communication Cable x 1

Power Cable For External Radio x 1

Extension Rod x 1

Extension Rod Accessories Package x 1

UHF-460C Transmitting Antenna x 1

RF-35A Transmitting Antenna Connector x 1

Tribrach Aluminum Sheet x 2

Certificate Of Quality x 2

Warranty Card x 2

QR Code Manual Card (Hi-target) x 1

Envelope x 2

Plastic Case PVC Label (Hi-Target) x 2

Base Plastic Case gray (137) w/o logo x 2

Aluminum Tripod x 2

Tribrach With Optical Plummet x 1

Radio Receiving Antenna x 1

Survey Pole Hi-target (new logo) 2.2m x 1

Power Adapter x 1

ihand55 Hand-held Controller x 1

USB Data Cable x 2

iHand55 Controller Pallet x 1

Touch Pen x 1

Carbon Fiber Bipod for Survey Pole x 1
